Belt Driven Centrifugal Fan
Yilida offers a variety of centrifugal fans for your specific application needs. Apart from options of forward curved blade and backward curved blade, our belt driven centrifugal fans are designed with either single inlet or double inlet.
- Belt Driven Centrifugal Fan (Forward Curved Blades, Double Inlet), SYT Series
- Impeller diameter: 7-30in
- Air flow: 1000-40000m³/h
- Pressure: up to 800Pa
- Drive method: belt drive
- Belt Driven Centrifugal Fan (Forward Curved Blades, Dual Inlet), SYD Series
- Impeller diameter: 180-1000mm
- Air flow: 1000-100000m³/h
- Pressure: up to 1300Pa
- Drive method: belt drive

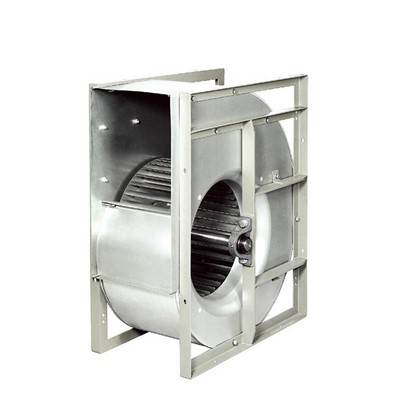

- Belt Driven Centrifugal Fan (Forward Curved Blades, Single Inlet), SYDS Series
- Impeller diameter: 180-1000mm
- Air flow: 1000-50000m³/h
- Pressure: up to 1300Pa
- Drive method: belt drive

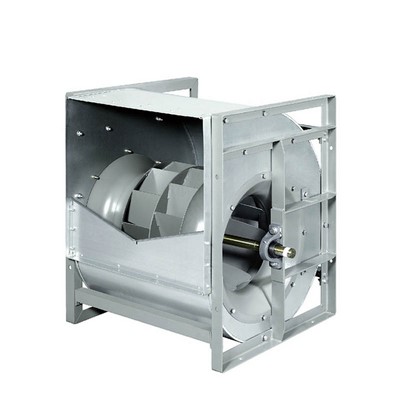

- Belt Driven Centrifugal Fan (Backward Curved Blades, Double Inlet), SYQ Series
- Impeller diameter: 200-1400mm
- Air flow: 1000-120000m³/h
- Pressure: up to 3000Pa
- Drive method: belt drive

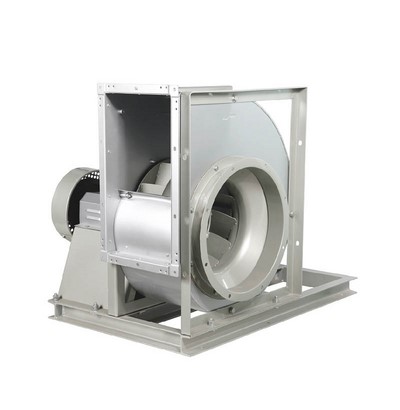

- Belt Driven Centrifugal Blower (Backward Curved Blades, Single Inlet), SYQS Series
- Impeller diameter: 180-1400mm
- Air flow: 700-120000m³/h
- Pressure: up to 3000Pa
- Drive method: belt drive

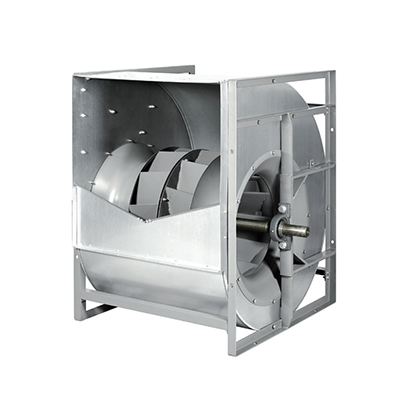

- Belt Driven Centrifugal Blower (Backward Curved Blades, Dual Inlet), SYH Series
- Impeller diameter: 280-1600mm
- Air flow: 2000-300000m³/h
- Pressure: up to 3000Pa
- Drive method: belt drive
About YILIDA
Yilida is a listed company that has been delivering custom fan solutions to global HVAC system market for nearly 30 years. Our longevity in the ventilation and air conditioning industry is based on the top quality of our ventilation fans that have been approved by AMCA, and global service network which can quickly response to worldwide customers who are looking for commercial fans or industrial blowers. Yilida has 8 fan production bases to manufacture a broad range of centrifugal fans and axial fans. Whether you are looking for general ventilation fans, smoke extract fans, inline duct fans, roof mounted fans or industrial process fans, Yilida can produce the air moving products that are precisely oriented to your applications of ventilation, smoke extraction, air conditioning, and more.
