EC Centrifugal Fan

The EC centrifugal fans are designed especially for supply & exhaust ventilation and air conditioning systems, where space-saving and quiet running are of increasing importance. Due to the adoption of electronically commutated (EC) external rotor motor, these centrifugal fans are featured by minimal acoustic noise and reduced overall size since the external rotor is directly attached to the fan impeller.

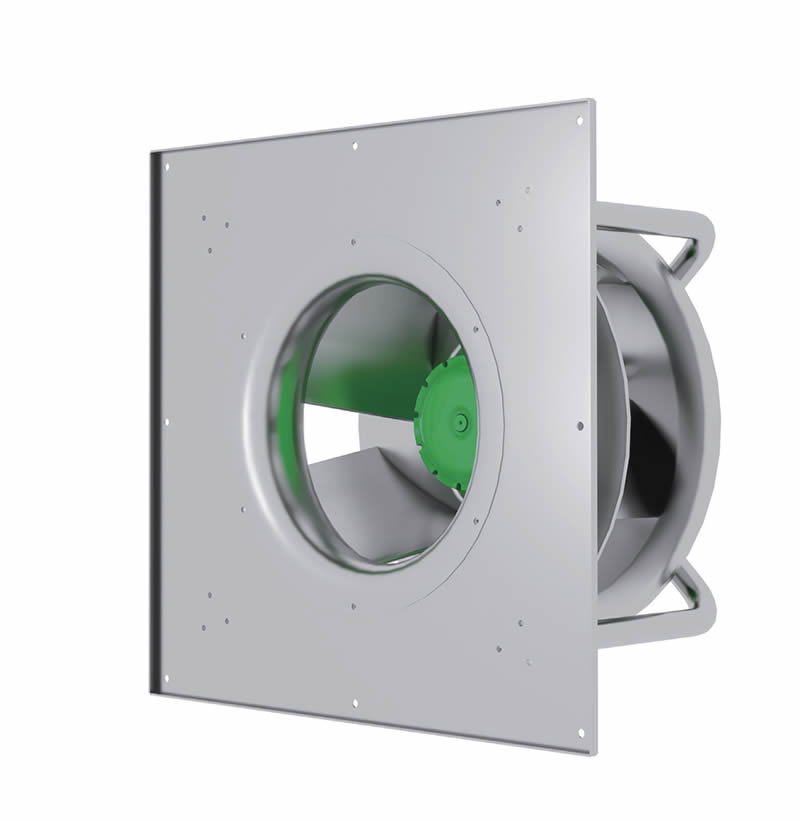

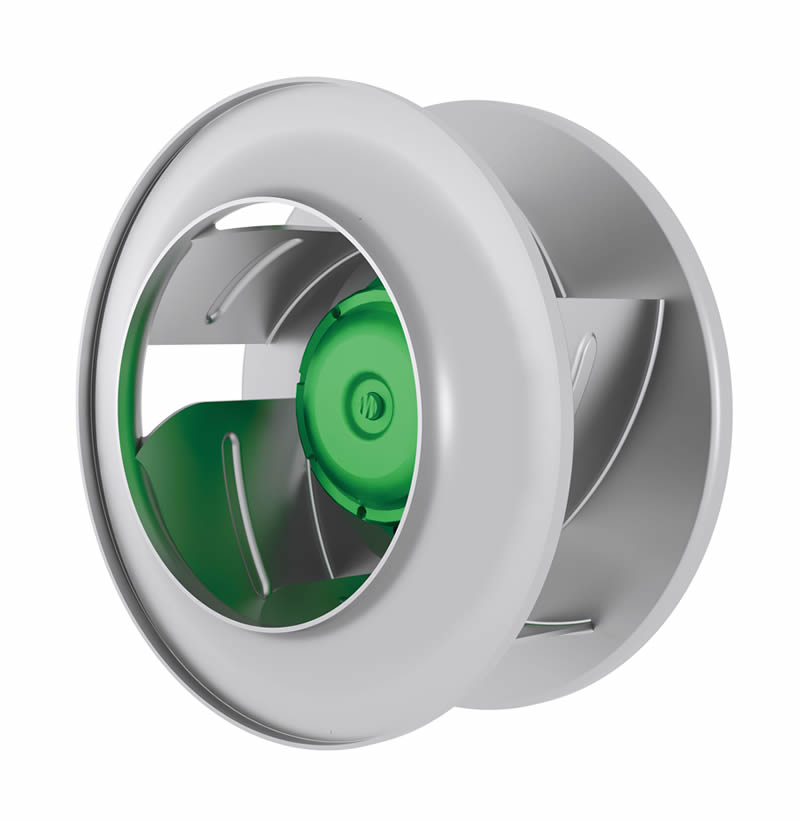

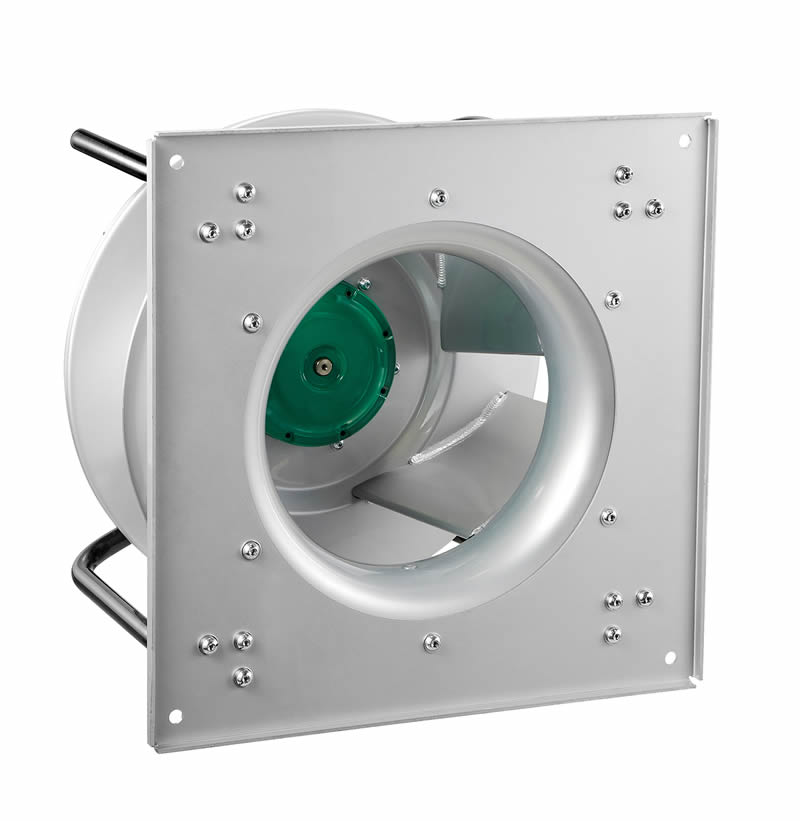

EC Centrifugal Fan (Backward Curved, Aluminum-magnesium Alloy)
EC Centrifugal Fan (Backward Curved, Aluminum-magnesium Alloy)
Usage: air conditioning, supply and exhaust ventilation systems
Impeller diameter: 315-630mm
Air flow: 2100-12500m³/h
Pressure: up to 800Pa
Drive method: direct drive
Installation: suitable for both vertical and horizontal mounting
Inquiry

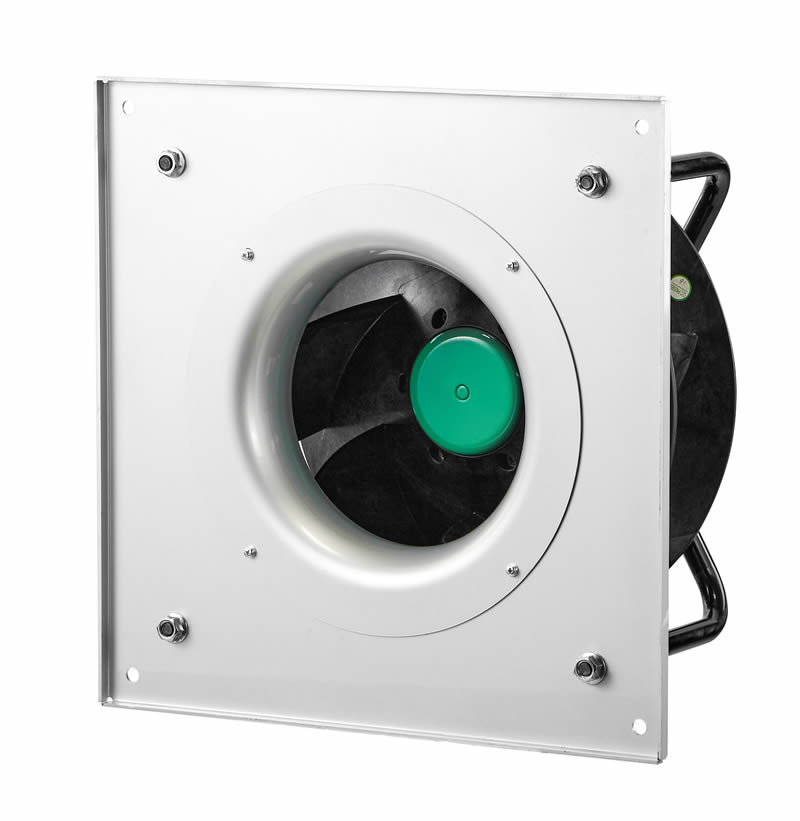

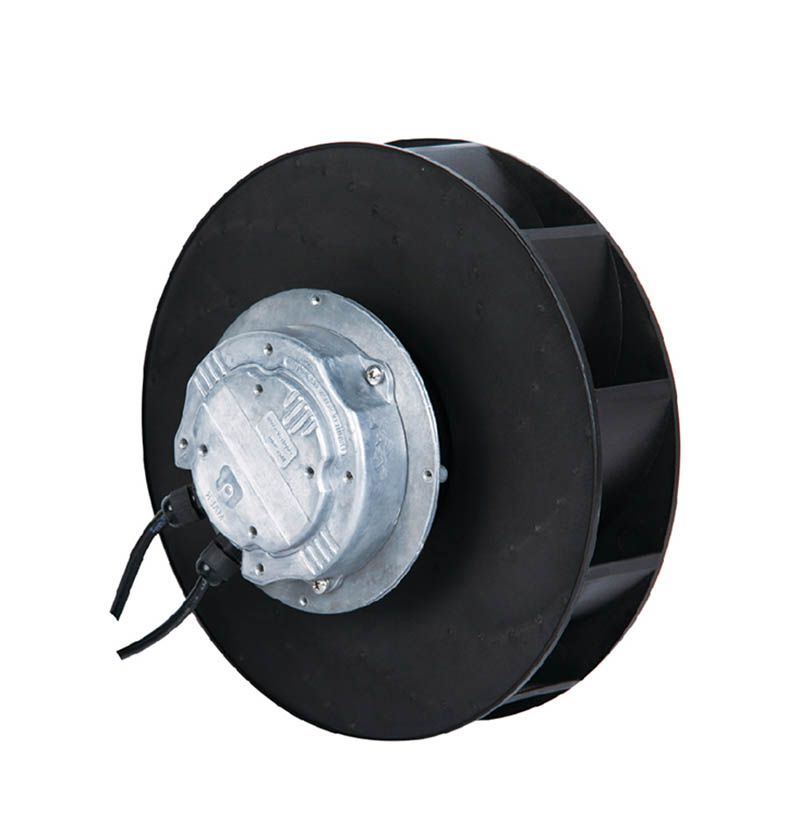

EC Motor Centrifugal Fan (Backward Curved, Plastic Impeller)
EC Motor Centrifugal Fan (Backward Curved, Plastic Impeller)
Usage: air conditioning, supply and exhaust ventilation systems
Impeller diameter: 190-280mm
Air flow: 600-1600m³/h
Pressure: up to 550Pa
Drive method: direct drive
Installation: suitable for both vertical and horizontal mounting
Inquiry

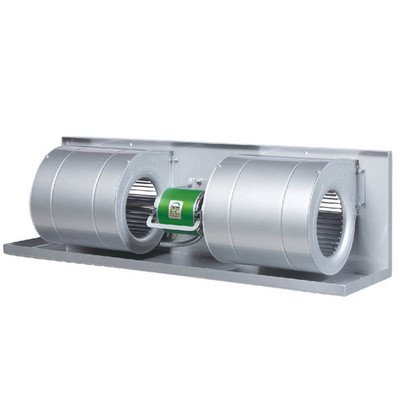

EC Centrifugal Fan (Forward Curved Impeller), PP Series
EC Centrifugal Fan (Forward Curved Impeller), PP Series
Usage: fan coil units, small ventilation ducting products
Impeller diameter: 130-200mm
Air flow: 100-2000m³/h
Pressure: 0-120Pa
Motor power: 60W-120W
Communication: VSP/PWM/485
Insulation class: B
Operating temperature: -40℃-60℃
Inquiry

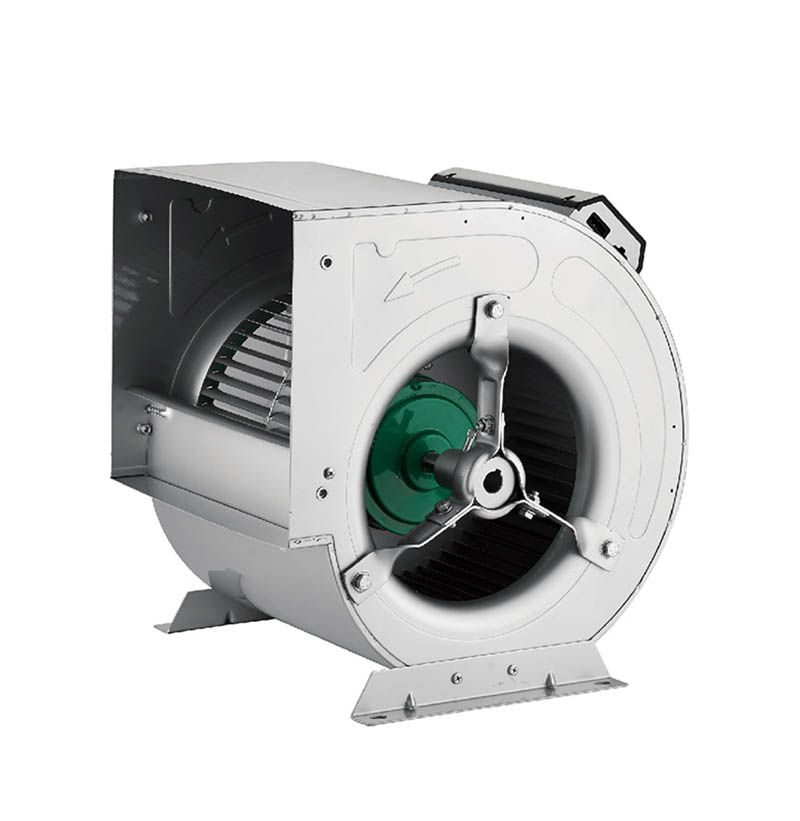

EC Centrifugal Blower (Forward Curved Impeller), ZQ Series
EC Centrifugal Blower (Forward Curved Impeller), ZQ Series
Usage: ceiling mounted air handlers, variable air volume (VAV) systems
Impeller diameter: 7-12in
Air flow: 300-5000m³/h
Pressure: 0-600Pa
Motor power: 250W-750W
Communication: VSP/PWM
Insulation class: B
Operating temperature: -40℃-60℃
Inquiry
